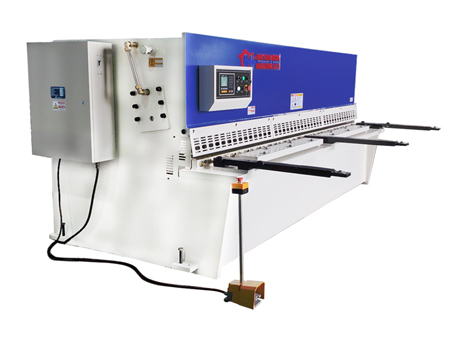

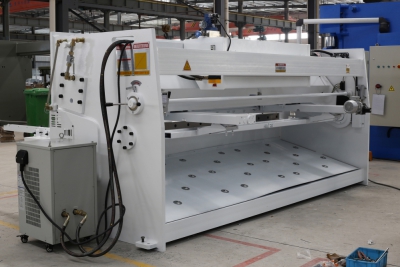

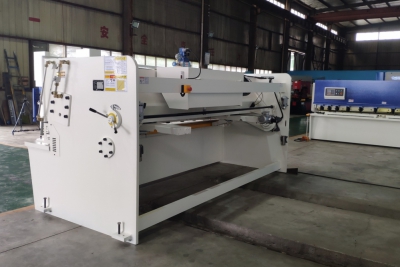

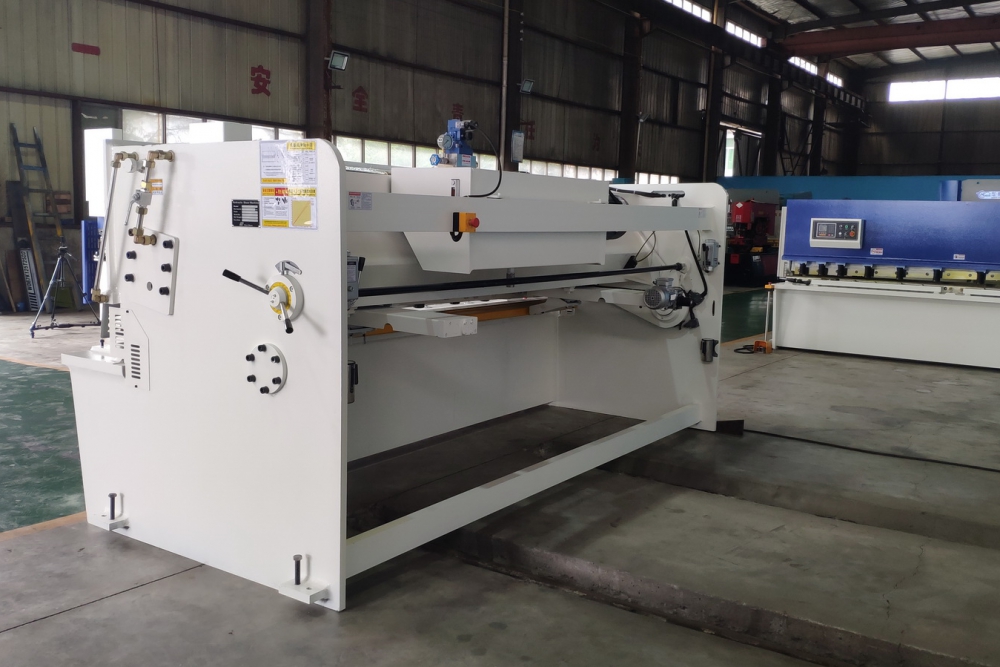

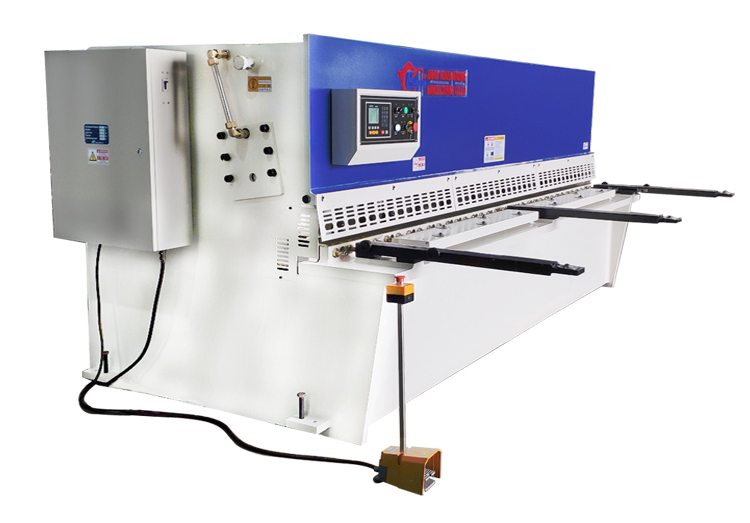

When designing the QC12K(Y) hydraulic sheet metal shear, we decided to have a back gauge that uses an ABBA ball screw and counting function for cutting is also added in the metal shearing machine.
Max cutting Thickness (mm)
6-25
Max. cutting width (mm)
3200-6000
Worktable Panel Thickness (mm)
30-60
Wallboard Thickness (mm)
30-80
| Type | Max. Cutting ThickNess | Max. Cutting Width | Worktable Panel ThickNess | wallboard ThickNess | thickNess of KNife Rest Upstand | Anti-Strength of Plate | Stroke Times | Throat Depth | Blade Length | Main Motor |
| 4×2500 | 4 | 2500 | 35 | 25 | 35 | 450 | 17 | 130 | 2600 | 5.5kW |
| 4×3200 | 4 | 3200 | 35 | 25 | 35 | 450 | 14 | 130 | 3300 | 5.5kW |
| 4×4000 | 4 | 4000 | 35 | 25 | 35 | 450 | 14 | 130 | 4100 | 5.5kW |
| 4×6000 | 4 | 6000 | 45 | 30 | 45 | 450 | 8 | 130 | 6040 | 7.5kW |
| 6×2500 | 6 | 2500 | 40 | 30 | 40 | 450 | 14 | 130 | 2600 | 7.5kW |
| 6×3200 | 6 | 3200 | 45 | 30 | 40 | 450 | 11 | 130 | 3300 | 7.5kW |
| 6×4000 | 6 | 4000 | 50 | 35 | 50 | 450 | 11 | 130 | 4100 | 7.5kW |
| 6×5000 | 6 | 5000 | 50 | 40 | 50 | 450 | 8 | 130 | 5050 | 11kW |
| 6×6000 | 6 | 6000 | 50 | 40 | 50 | 450 | 8 | 130 | 6040 | 11kW |
| 8×2500 | 8 | 2500 | 45 | 35 | 45 | 450 | 14 | 130 | 2600 | 7.5kW |
| 8×3200 | 8 | 3200 | 50 | 35 | 45 | 450 | 11 | 130 | 3300 | 7.5kW |
| 8×4000 | 8 | 4000 | 50 | 40 | 50 | 450 | 10 | 130 | 4100 | 7.5kW |
| 8×5000 | 8 | 5000 | 50 | 45 | 50 | 450 | 8 | 200 | 5050 | 11kW |
| 8×6000 | 8 | 6000 | 55 | 45 | 50 | 450 | 5 | 130 | 6040 | 11kW |
| 10×3200 | 10 | 3200 | 50 | 45 | 50 | 450 | 10 | 130 | 3300 | 11kW |
| 10×4000 | 10 | 4000 | 50 | 45 | 50 | 450 | 8 | 175 | 4100 | 11kW |
| 12×2500 | 12 | 2500 | 50 | 45 | 50 | 450 | 11 | 175 | 2600 | 18.5kW |
| 12×3200 | 12 | 3200 | 50 | 50 | 50 | 450 | 10 | 175 | 3300 | 18.5kW |
| 12×4000 | 12 | 4000 | 50 | 50 | 50 | 450 | 8 | 175 | 4100 | 18.5kW |
| 12×5000 | 12 | 5000 | 60 | 50 | 60 | 450 | 6 | 200 | 5075 | 22kW |
| 12×6000 | 12 | 6000 | 60 | 50 | 60 | 450 | 6 | 200 | 6040 | 22kW |
| 16×4000 | 16 | 4000 | 60 | 50 | 50 | 450 | 6 | 200 | 4100 | 18.5kW |
| 20×6000 | 20 | 6000 | 80 | 70 | 80 | 450 | 4 | 100 | 6040 | 30kW |
| 25×6000 | 25 | 6000 | 100 | 80 | 100 | 450 | 5 | 200 | 6040 | 45kW |

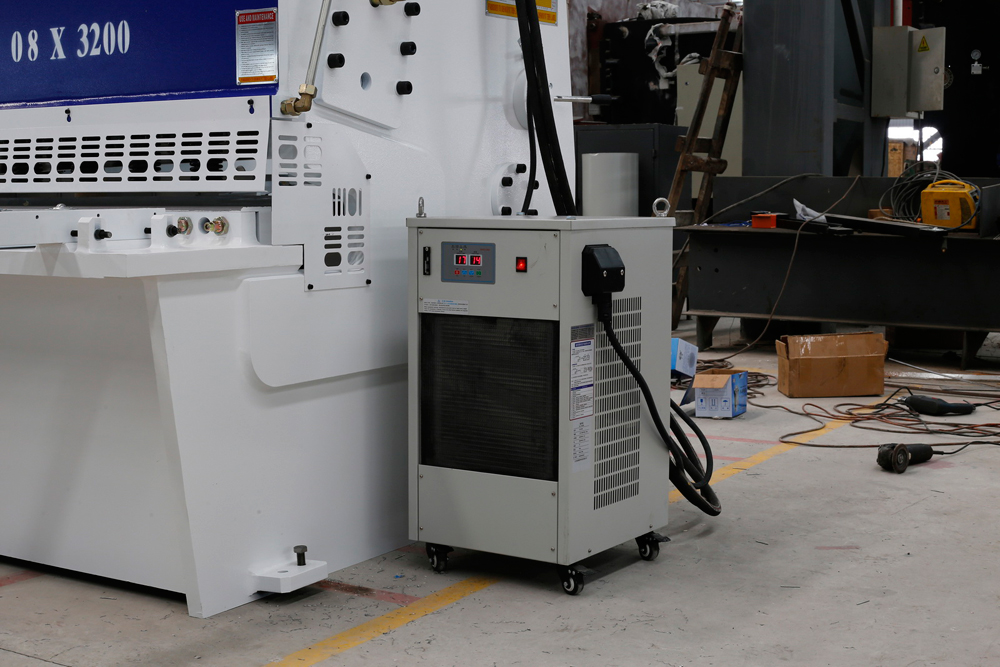

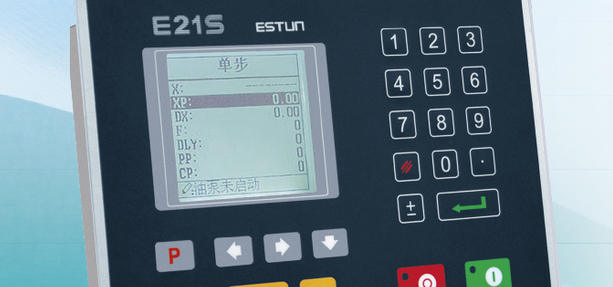

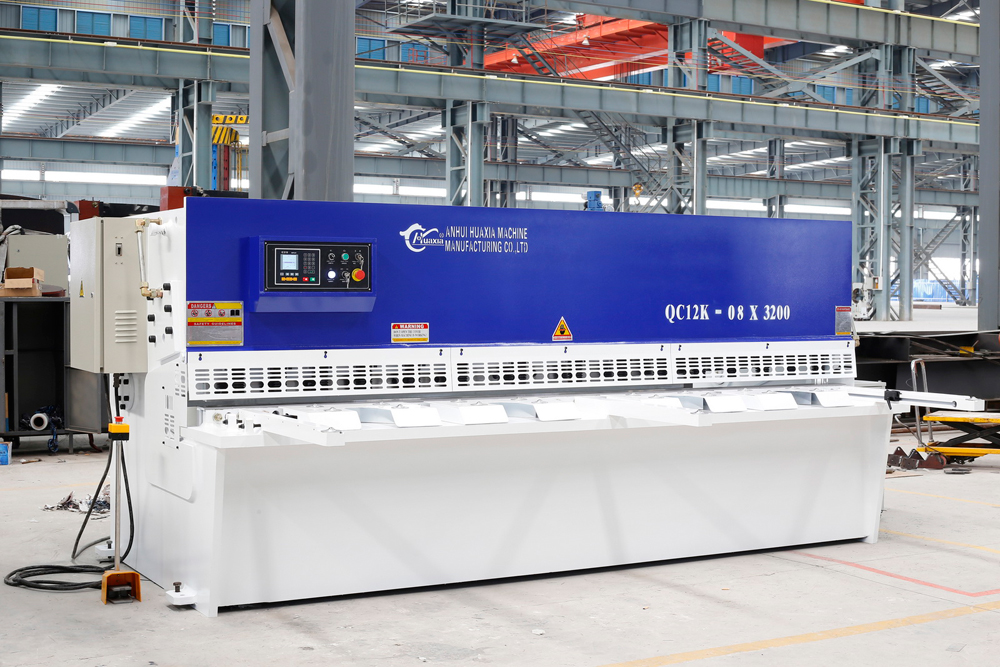

The metal shear display the position of the back gauge in real time, which is convenient for the operator.
The metal shear's multi-stages programing function allows for automatic operation of the back gauge and continuous positioning, achieving the position of back gauge automatic adjustment with excellent precision.
The counting function of cutting can display the shear amount in real time, and when the power turned off, it can record the back gauge's position, program and parameters.

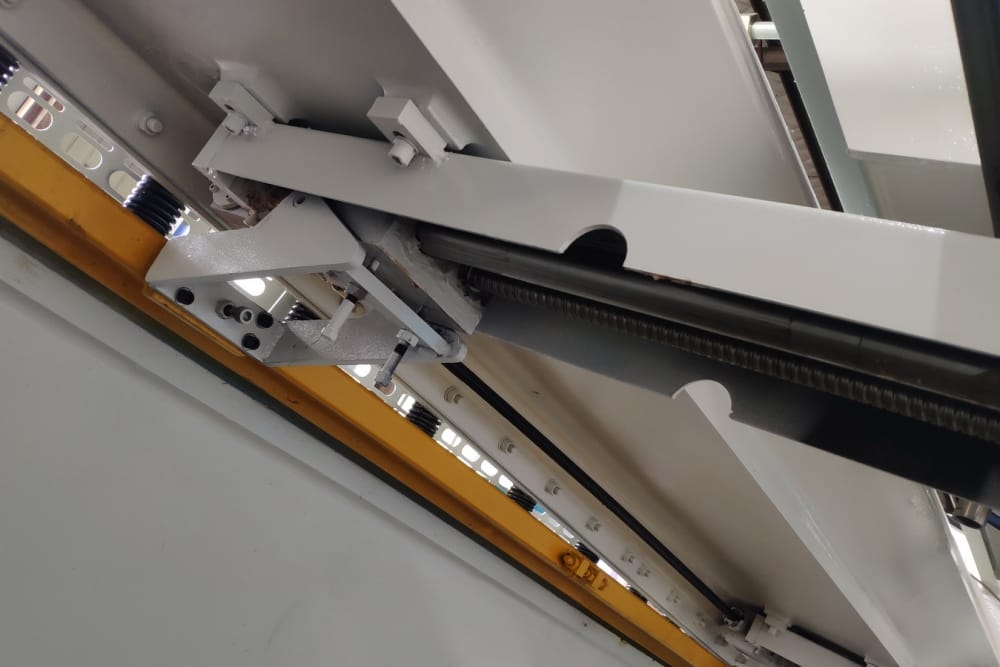

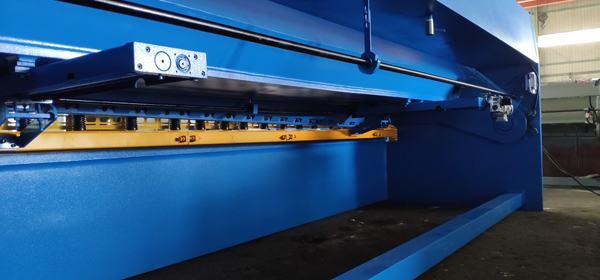

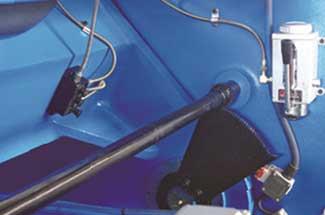

The back gauge uses an ABBA ball screw, ensuring the accuracy of the back gauge's position, and makes the machine's processing accuracy higher.

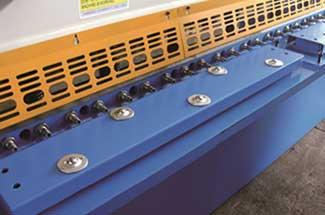

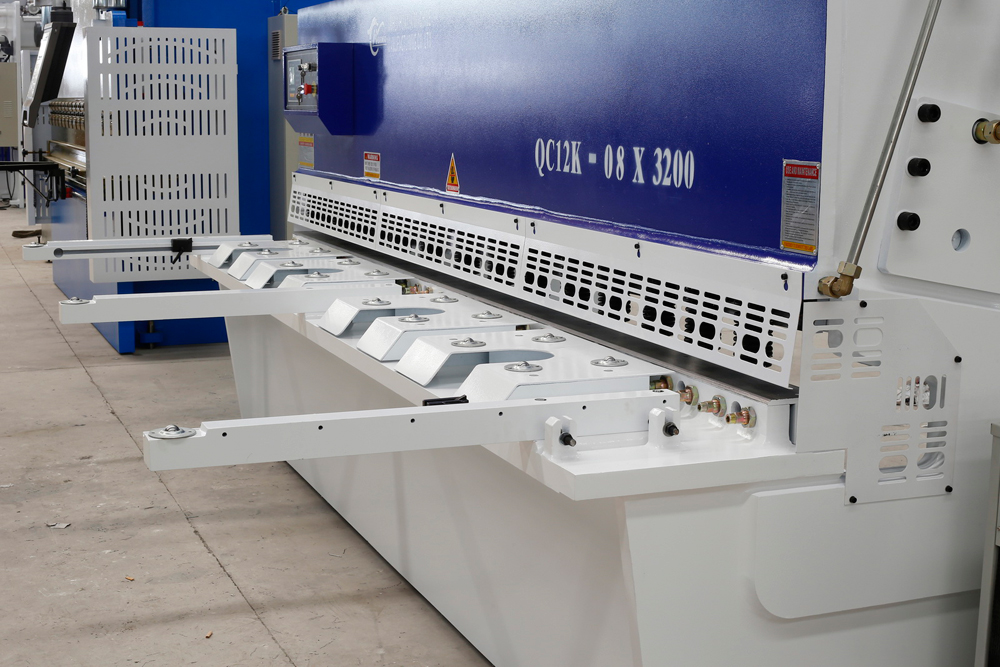

Ball Bed

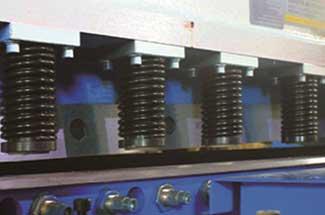

Hold Down Cylinders

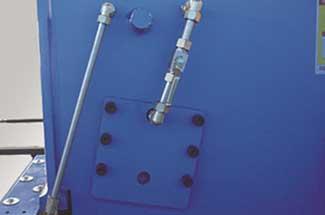

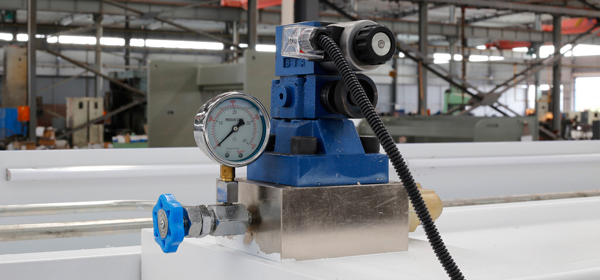

Union Connector

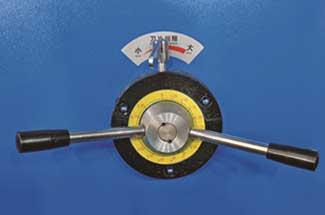

Blade Gap Clearance Adjust

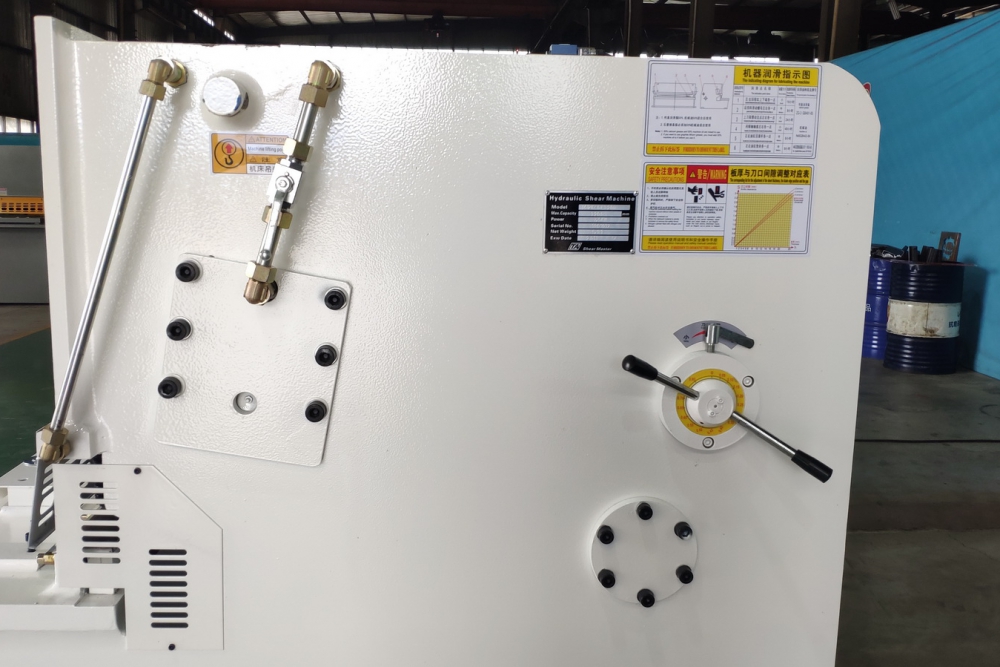

Manual Refuel Device

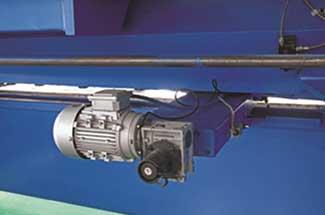

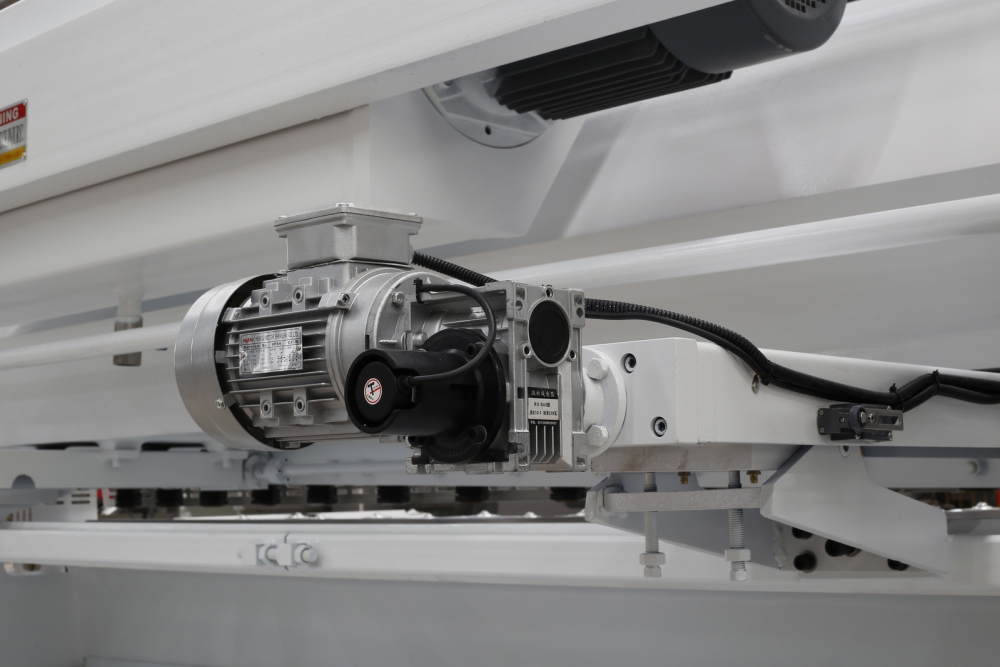

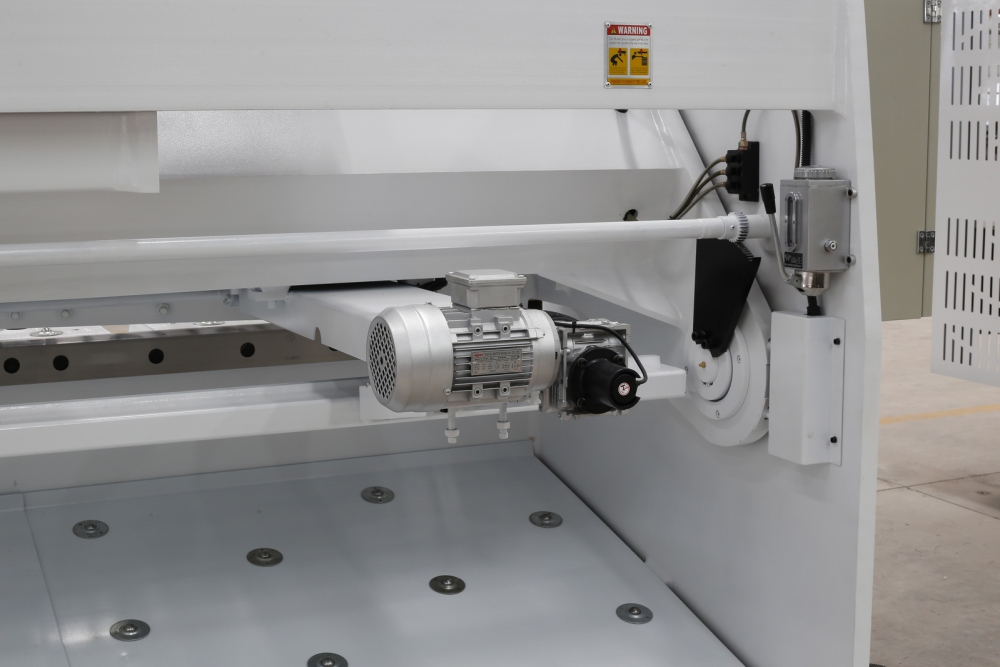

Back Gauge MotorGot questions about our metalworking machines? We’re here to help you choose the right solution for your business. Contact us now!
We offer the following types of shearing machines:
Guillotine shears offer high cutting precision and are suitable for thick plate cutting, with excellent cutting straightness, ideal for high-precision processing. Swing Beam shears have a simple structure, high cost-effectiveness, suitable for medium thickness plate cutting, and low maintenance costs.

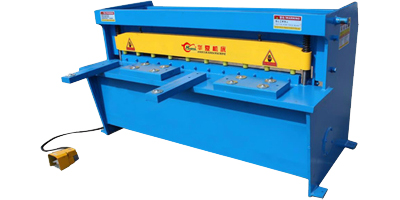

Mechanical shearing machines are suitable for thin plate processing, with fast cutting speeds, ideal for mass production. Hydraulic shearing machines are suitable for thick plate cutting, with high power and stable cutting force, ideal for high-intensity processing.
