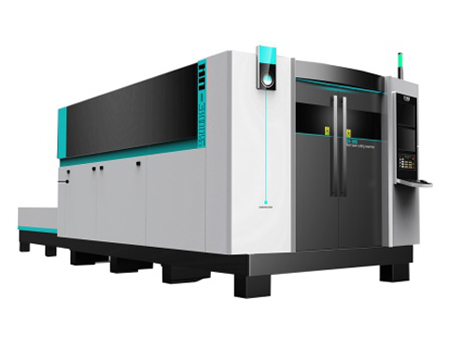

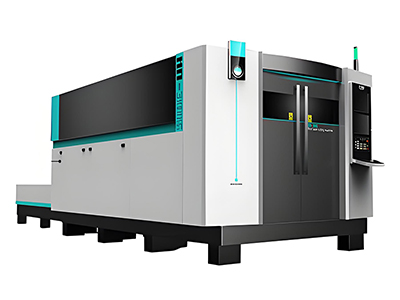

CNC Laser System Metal Cutting Machine with Full Cover

CNC Laser System Metal Cutting Machine with Full Cover

Cuuting Accuracy (mm)

±0.03

Max Positioning Speed (mm)

100

Max Acceleration (G)

2

Max Load of Worktable (kg)

500-1200

Request a Quote
Technical Parameters
Model 1000w 2000w 3000w 4000w
Cutting thickness MS (mm) 10 16 20 22
Cutting thickness SS (mm) 5 8 10 14
Cuuting Accuracy (mm) ±0.03 ±0.03 ±0.03 ±0.03
Max Positioning Speed (mm) 100 100 100 100
Max Acceleration (G) 2 2 2 2
X Axis Track (mm) 1500 1500 1500 1500
Y Axis Track (mm) 3000 3000 3000 3000
Z Axis Track (mm) 100 100 100 100
Laser Power (W) 1000 2000 3000 4000
Max Load of Worktable (KG) 500 800 1000 1200
Machine Weight (KG) 5500 9500 9500 9500
Noise (db) <75 <75 <75 <75
Diemension (mm) 9400x4500x2200
  • Related Metalworking Machines
    1. CNC Laser System Metal Cutting Machine
      CNC Laser System Metal Cutting Machine

      The laser cutting tube and sheet machine can shear sheets made from various materials, including carbon steel, stainless steel, aluminum alloy and copper.

    1. CNC Laser System Metal Cutting Machine with Full Cover
      CNC Laser System Metal Cutting Machine with Full Cover
      Cuuting Accuracy (mm): ±0.03
      Max Positioning Speed (mm): 100
Get in Touch

Got questions about our metalworking machines? We’re here to help you choose the right solution for your business. Contact us now!

Email: echo@ahhxjc.com
Tel.: +86-18655592716
You Might Also Be Interested In
    W12 4-roll Plate Rolling Machine
    Plate Rolling Machine
    NC Semi-Automatic Tube Bending Machine
    Tube Bending Machine
    J23 J21 Power Press Machine
    Punch Press
    Hydraulic Press for Sheet Metal Extending
    Hydraulic Press
    Hydraulic Ironworker
    Other Machines
    WD67K CNC Press Brake
    Hydraulic Press Brake
    QC11K(Y) Hydraulic Guillotine Shear
    Shearing Machine
    CNC Laser System Metal Cutting Machine
    Laser Cutting Machine
What is a laser cutting machine?

A laser cutting machine is a precision machining device that uses a high-energy laser beam to cut various materials. By focusing the laser energy on a small point, it rapidly melts, evaporates, or burns the material, thereby achieving precise cutting.

What types of laser cutting machines do you offer?

We primarily offer two types of laser cutting machines:

CNC Laser System Metal Cutting Machine (Open Type): Suitable for cutting various metal materials, open structure for easy loading and unloading, suitable for large format cutting needs.
CNC Laser System Metal Cutting Machine with Full Cover: Fully enclosed structure, equipped with a fume purification system, safe and environmentally friendly, suitable for high-precision cutting and special environments.
What materials can your laser cutting machines cut?

Our laser cutting machines can cut carbon steel, stainless steel, aluminum alloy, copper, galvanized sheets, titanium alloy, and other metal materials. The specific processing capability depends on the laser power.

Is training provided with machine purchase?

Yes, Huaxia provides comprehensive operator training with every machine purchase. This includes machine operation, maintenance, and troubleshooting.

Which industries are laser cutting machines suitable for?

Laser cutting machines are suitable for:

Automotive manufacturing
Aerospace
Electronics and electrical appliances
Kitchenware manufacturing
Advertising signage
Metal furniture
Agricultural machinery
Architectural decoration
How to choose the right model of laser cutting machine?

When selecting the appropriate laser cutting machine, the following factors need to be considered:

The type and thickness of the primary materials to be processed
The required cutting precision
The expected production volume
The available workspace
The budget
