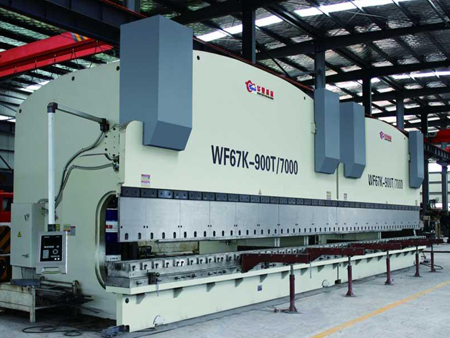

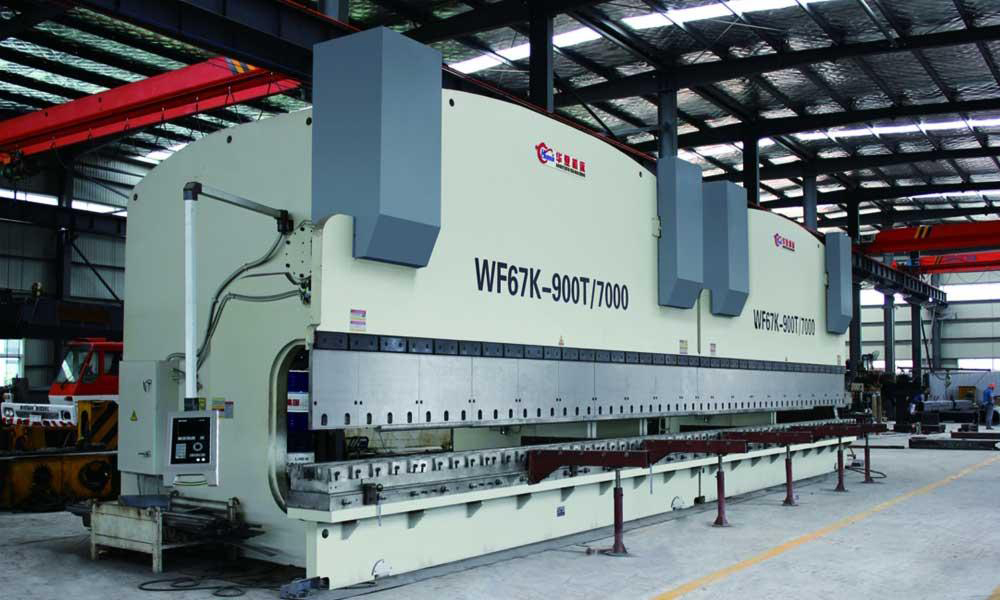

2-WF(D)67K CNC Controlled Hydraulic Press Brake

The structure of the CNC control bending press brake is holistically processed and the press brake features outstanding bending speed with a high degree of positioning accuracy.

Nominal Pressure (KN)

2-(2000-6000)

Bench Length (mm)

2-(6000-8000)

Bench Width (mm)

220-400

Pole Distance (mm)

4600-6200

Request a Quote
2-WF(D)67K CNC Controlled Hydraulic Press Brake
  • 2-WF(D)67K CNC Controlled Hydraulic Press Brake
  • 2-WF(D)67K CNC Controlled Hydraulic Press Brake
  • 2-WF(D)67K CNC Controlled Hydraulic Press Brake
  • 2-WF(D)67K CNC Controlled Hydraulic Press Brake
Parameters
Model 2-200T/6000 2-400T/6000 2-500T/6000 2-600T-8000
Nominal Pressure (KN) 2-2000 2-4000 2-5000 2-6000
Bench Length (mm) 2-6000 2-6000 2-6000 2-8000
Bench Width (mm) 220 320 360 400
Pole Distance (mm) 4800 4600 4800 6200
Throat Depth (mm) 400 400 400 500
Slider Stroke (mm) 250 250 300 300
Max. Opening Height (mm) 500 520 620 620
Slider Stroke Adjust Length (mm) 180 200 200 250
Oil Cylinder Diameter (mm) Φ240 Φ350 Φ380 Φ420
Main Motor (kw) 2-11 2-30 2-37 2-45
Machine Length (mm) 2×6100 2×6200 2×6200 2×8400
Machine Width (mm) 2×2150 2×2700 2×2900 2×3300
Machine Height (mm) 2×3350 2×4100 2×4300 2×5600
Features

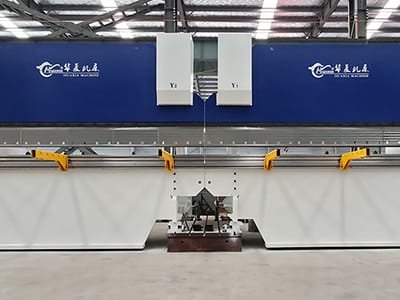

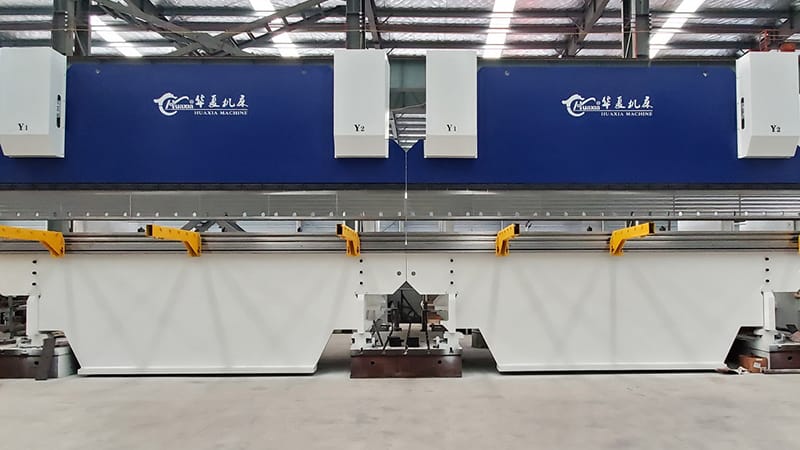

  • The 2-WF67K(Y) press brake adopts two kinds of the same specification press brake and features a double linkage synchronization system.
  • The two press brake linkage can be used to process workpieces 6m long, and both machines can work individually. This improves production efficiency.
  • The synchronizer is available for torsion shaft synchronization, mechanical-hydraulic synchronization, electro-hydraulic synchronization, which can be selected according to the needs of the customer.
  • The press brake can be outfitted with various CNC controllers to perform multi-axis controlling.
Get in Touch

Got questions about our metalworking machines? We’re here to help you choose the right solution for your business. Contact us now!

Email: echo@ahhxjc.com
Tel.: +86-18655592716
You Might Also Be Interested In
    QC11K(Y) Hydraulic Guillotine Shear
    Shearing Machine
    CNC Laser System Metal Cutting Machine
    Laser Cutting Machine
    W12 4-roll Plate Rolling Machine
    Plate Rolling Machine
    NC Semi-Automatic Tube Bending Machine
    Tube Bending Machine
    J23 J21 Power Press Machine
    Punch Press
    Hydraulic Press for Sheet Metal Extending
    Hydraulic Press
    Hydraulic Ironworker
    Other Machines
    WD67K CNC Press Brake
    Hydraulic Press Brake

Huaxia CNC press brakes are equipped with advanced controllers (Dutch DELEM, Italian ESA, or Swiss CYBELEC) and offer the following benefits:

High Precision: Enhanced accuracy in bending operations.
Efficiency: Increased bending speeds by up to 30% compared to traditional press brakes.
Versatility: Suitable for complex shapes and various materials.

CNC press brakes utilize computer numerical control systems, offering higher precision and better bending repeatability, ideal for high-volume production. Hydraulic press brakes use hydraulic systems, providing a more cost-effective solution suitable for a wide range of material processing.

Our press brakes are available in various specifications, including table lengths from 500 to 18,000mm and bending forces from 20 to 3,500T. We can recommend the appropriate model based on your specific requirements.

Our press brakes can process a variety of metal materials, including carbon steel, stainless steel, aluminum alloy, and copper plates. The specific equipment selection depends on the material thickness and bending requirements.

Daily maintenance of a press brake primarily includes:

Regular Cleaning: Removing dust and debris.
Lubrication: Lubricating moving parts as per the manual.
Hydraulic System Check: Ensuring proper oil levels and no leaks.
Electrical System Check: Verifying secure connections and intact wiring.
Calibration: Regularly checking and calibrating bending accuracy.
Consumable Replacement: Replacing worn-out molds and parts promptly.

Huaxia press brakes are suitable for:

Automotive manufacturing
Environmental protection equipment
Petroleum equipment production
Power tower fabrication
Steel structure manufacturing
Precision sheet metal components
Small household appliances
Computer and equipment enclosures

Yes, Huaxia offers OEM customization for press brakes, including appearance, color, and configuration adjustments to meet specific customer needs. Customized products may have a slightly higher price.
