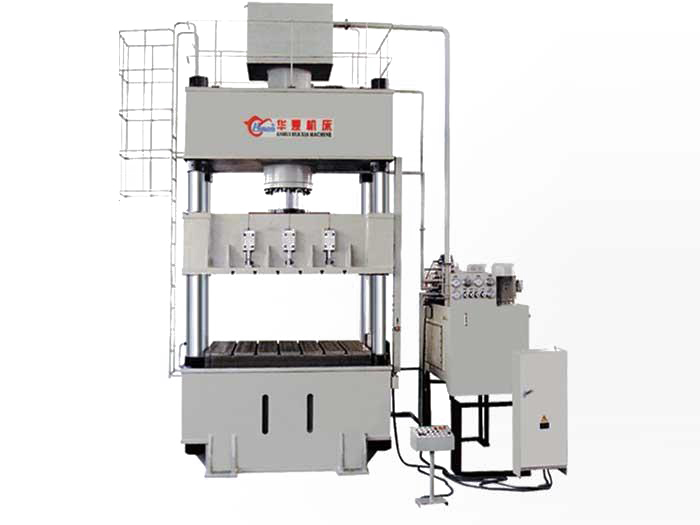

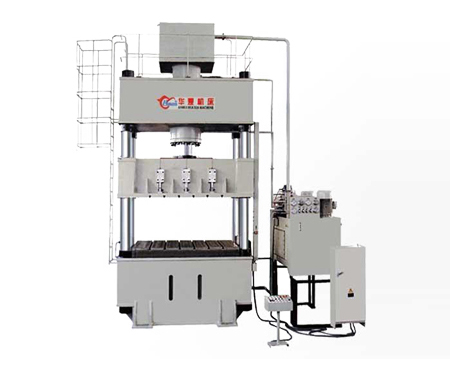

Hydraulic Press for Sheet Metal Extending

Hydraulic Press for Sheet Metal Extending

The hydraulic press for sheet metal extending has two operation modes: adjustment and semi-automatic. The semi-automatic process is then divided into fixed stroke single cycle and constant pressure single cycle.

Nominal Force (kN)

630-10000

Max. Pressure of Liquid (KN)

25

Max. Daylight (mm)

900-2300

Height of Table Above Floor (mm)

0-750

Request a Quote
Parameters
Item Y27-63 Y27-100 Y27-200 Y27-315 Y27-500 Y27-630 Y27-1000
Nominal Pressure (KN) 630 1000 2000 3150 5000 6300 10000
Return Force (KN) 180 260 480 630 1000 1250 1250
Cushion Force (KN) 200 500 800 1250 1000 2500 3000
Max. Pressure of Liquid (KN) 25 25 25 25 25 25 25
Stroke Slider (mm) 450 700 710 800 900 1000 1400
Cushion (mm) 180 300 250 300 350 400 350
Max. Daylight (mm) 900 1000 1120 1250 1500 1600 2300
Slider Speed Descent (mm/s) 120 150 100 100 140 100 100
Pressing (mm/s) 11-15 20 6-15 6-12 5-15 6-14 12
Reture (mm/s) 130 80 80 60 70 65 60
Table Dimension L-R (mm) 560 720 1000 1250 1400 2600 2500
F-B (mm) 500 580 900 1120 1400 1750 2000
Cushion Dimensions L-R (mm) 310 470 800 900 1100 1950 2000
F-B (mm) 300 430 630 800 1100 1200 1500
Height of Table above Floor (mm) 750 750 500 600 500 500 0
Total Power (kw) 11 11 22 22 45 45 90
Overall Dimension F-B (mm) 1420 1960 2698 3018 4120 5222 5800
L-R (mm) 1265 1620 2530 2530 3600 3785 6050
Height Above Floor (mm) 2689 3250 4110 4560 5545 5970 8098
Depth Below Floor (mm) 300 800 1000 1200 1400 2400
Form of Frame Four column Four column Four column Four column Four column Four column Four column
Features
  • The hydraulic press uses a computer optimized structural design and 4 hydraulic columns in order to make the machine more simple, economical and practical.
  • The hydraulic control system uses an integrated system on the cartridge valve to ensure a reliable operation, long service life, low hydraulic impact, and reduces pipe connections in order to minimize potential leakage points.
  • The independent electric control system ensures the hydraulic press works reliably, the movement is intuitionistic, and the maintenance convenient.
  • The control button uses central control for the device.
  • The working pressure of the slider, the travel range of the no-load fast downlink and the slow working feed can be adjusted according to the process requirements.
    • 4 Column Hydraulic Press Machine
      4 Column Hydraulic Press Machine

      The 4 column hydraulic press machine uses computer optimization and consists of 3 separate parts and 4 hydraulic columns.

    • Hydraulic Door Skin Press Machine
      Hydraulic Door Skin Press Machine

      The hydraulic door skin press machine has a main engine consisting of the engine body, main cylinder, ejection cylinder and filling valve.
