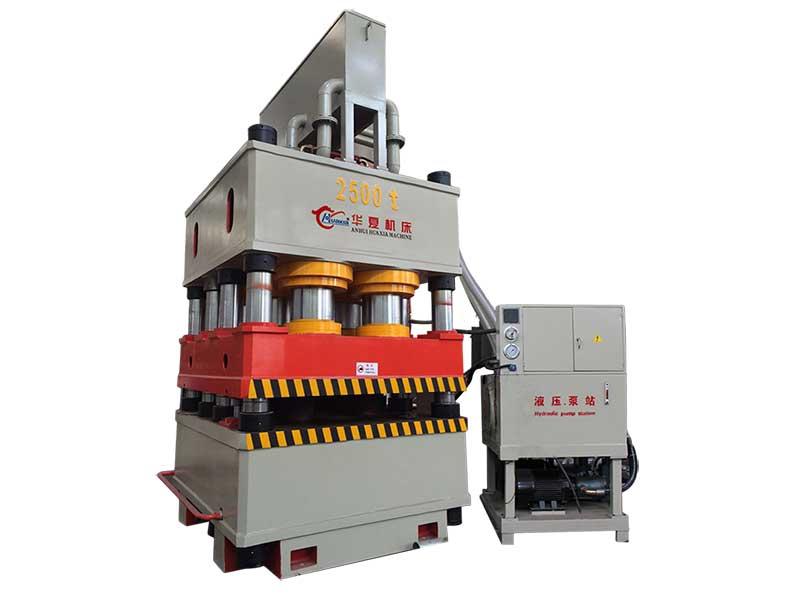

Hydraulic Door Skin Press Machine

The hydraulic door skin press machine has a main engine consisting of the engine body, main cylinder, ejection cylinder and filling valve. It also features a control system that consists of the power mechanism, limiting device, hydraulic remote control device and electric control box.

Nominal Force (kN)

30000

Return Force (KN)

435

Slide Stroke (mm)

500

Maximum Working Pressure of Hydraulic System (MPa)

Request a Quote

Parameters

Specifications and Models		Y78-3000T
Nominal Force (kN)		30000
Return Force (KN)		435
Slide Stroke (mm)		500
Maximum Working Pressure of Hydraulic System (MPa)		25
Slider Travel Speed	Rapid Down (mm/s)	100-120
	Slow Down (mm/s)	7-12
	Return Speed (mm/s)	100-120
Table Size	Length (mm)	2500
	Width (mm)	1500
Total Power (KW)		30+30=60
Plunger Cylinder Diameter (mm)		ZSG500 X 500 X 6
Column Diameter (mm)		265 X 4, 195 X 4

Features

The hydraulic press is mainly consists of three sections, designed with 8 hydraulic columns.
The cylinder block is forged using GB/T699-1999 steel. The cylinder plunger is hard cold cast iron and the surface hardness is higher than HRC45.
Eight columns are made out of GB/T 699-2015 steel, quenched to HBS255-275. The surface hardness plated with hard chromium is more than HRC55. The guide sleeve is made of QT450-10 ductile iron.
The entire system uses a cartridge valve with a simple structure and reliable operation with no leaks, thus meeting the needs for high pressure and a large flow rate. The excellent heat dissipation performance reduce the reactive power loss.
