4 Column Hydraulic Press Machine

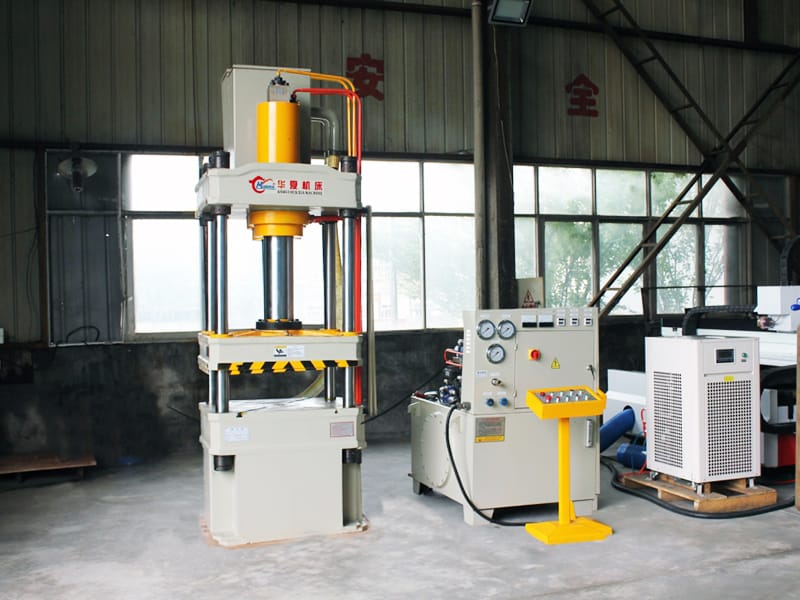

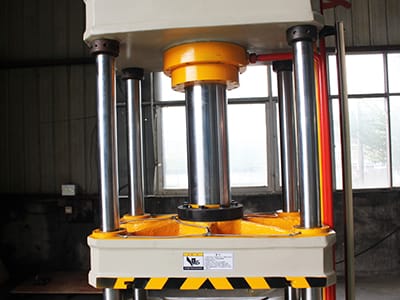

The 4 column hydraulic press machine uses computer optimization and consists of 3 separate parts and 4 hydraulic columns. This hydraulic press is applicable for metal sheet stretching and pulling, stretching, punching, bending. It is also used for pulling, stretching and pressing large-scale products.

Nominal Force (kN)

630-6300

Backstroke Force (KN)

120-1000

Ejecting Stroke (mm)

160-355

Max. Opening Height (mm)

90-1500

Request a Quote

Parameters

Type		YQ32-63	YQ32-100	YQ32-200	YQ32-315	YQ32-400	YQ32-500A	YQ32-630
Technical Parameter		-	-	-	-	-	-	-
Nominal Force (kN)		630	1000	2000	3150	4000	5000	6300
Ejecting Force (kN)		100	250	400	630	630	1000	1000
Backstroke Force (kN)		125	320	450	600	600	1000	1000
Slipper Stroke (mm)		500	600	700	800	800	900	900
Ejecting Stroke (mm)		160	200	250	300	300	355	355
Max. Opening Height (mm)		800	90	1120	1250	1250	1500	1500
Slipper Stroke Speed (mm/s)	Idle Stroke Down	22	24	100	100	100	120	80
	Work	9	10	120	12	12	12	10
	Return	50	50	50	60	60	70	50
Ejecting Stroke Speed (mm/s)	Eject	50	80	60	60	60	80	80
	Back	100	160	120	100	100	200	200
Workbench Size (mm)	Left and Right	520	720	900	1120	1250	2200	1600
	Front and Back	490	580	900	1120	1250	1400	1600
Poles Distance (mm)	Left and Right	650	800	1140	1140	1500	2620	1950
	Front and Back	350	430	660	900	1000	1120	1200
Dimension (mm)	Left and right	900	2000	1380	1160	3600	4700	5200
	Front and Back	500	1090	900	1660	2300	3600	4600
	Height on Ground	2400	3162	2725	4295	4500	5220	6000
Motor Power (kW)		7.5	11	15	22	30	45	60

Features

The hydraulic control system uses an integrated system for the cartridge valve to ensure a reliable operation, long service life, and low hydraulic impact, as well as a reduction pipe connections in order to minimize potential leakage points.

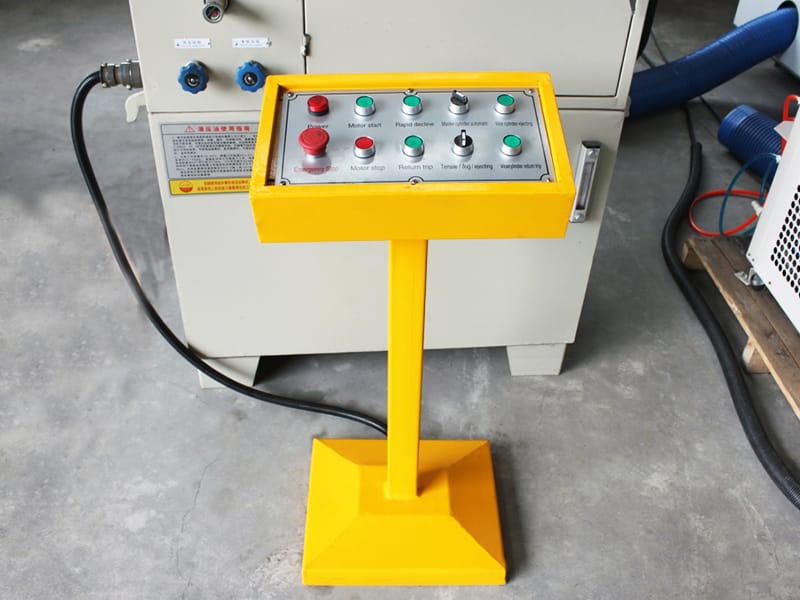

The independent electric control system ensures the hydraulic press works in a reliable manner with a smooth movement and easy maintenance. Central control is achieved with the push of a button, and features two modes: single operation or loop operation.
Users can select the forming process using the operation panel. By using it, hold up time can also be set.
The working pressure and the stroke can be adjusted within the specified range according to the process requirements
